Fully Electronic Weighbridges

Fully Electronic WeighBridges (Loards Brand)

Salient Features:

  • Two Nos. Of Steel Longitudinal Grinder.
  • Carrying Strength About 1.5% More Than Rated Capacity.
  • Distributed Load Over The Weigh-Bridge Length.
  • Standard Length Of Load Cell Integral Cable 15 Meters.
  • Environmental Conditioning.
  • All Metal Parts Coated With Two Coats Of High Quality, Corrosion Proof Bitumen Paints.
  • Moisture Prevention Through Various Alternatives.

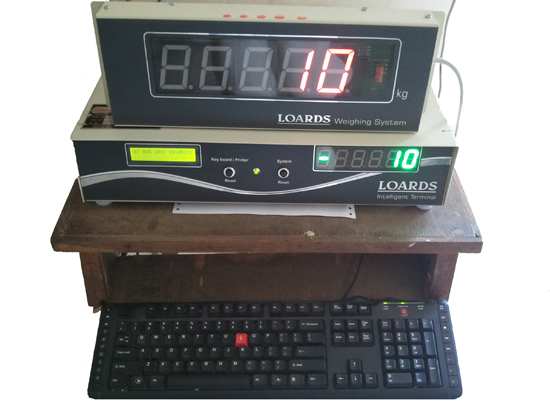

Intelligent Monitor

Memory 8k + 128 For Data Storage With Battery Backup With 1395 Operations With Auto Delete.
Printer Port Centronics Compatible Parallel Port.
Display 20 Character X 2 Line LCD Display With Back Light For Data Entry With Date & Time.
Display & Remote Display 7 Segment, 6 Digit (60 Mm Height) Red LED
Consolidated Reports Date, Purchase, Supplier Vehicle Material.
Input Voltage 200 V - 250 V AC @ 50 Hz
Power Consumption 10 VA (Approx.)
Environmental Operating Temperature : 10 To 55 Celcious Humidity : 0 To 95% Noncondensing

Load Cell

Type Cup-Ball (Center Loaded
Zero Balance +/-1.0% FSO (30 Minutes)
Temperature Effect On Output 0.0015% FS0 / Degree Celsius
On Zero 0.0020% FSO / Degree Celsius
Safety Factor 1.5% Of Rated Weight Capacity.
Repeatability 0.01%
Non-linearity <+1-0.025% FS0 (Full Scale Output)
Hysterisis 0.02% FSO.

Conversion

  • Salient Features:
    • ‘S’ Type Load Cell
    • Alphanumeric Display-intelligent Monitor With 1395 Memory.
    • RS 232 Interface
    • Jumbo Remote Display
    • Red LED Display 25 Mm Segment Optional
